Compact excavator Heavy duty ditching bucket

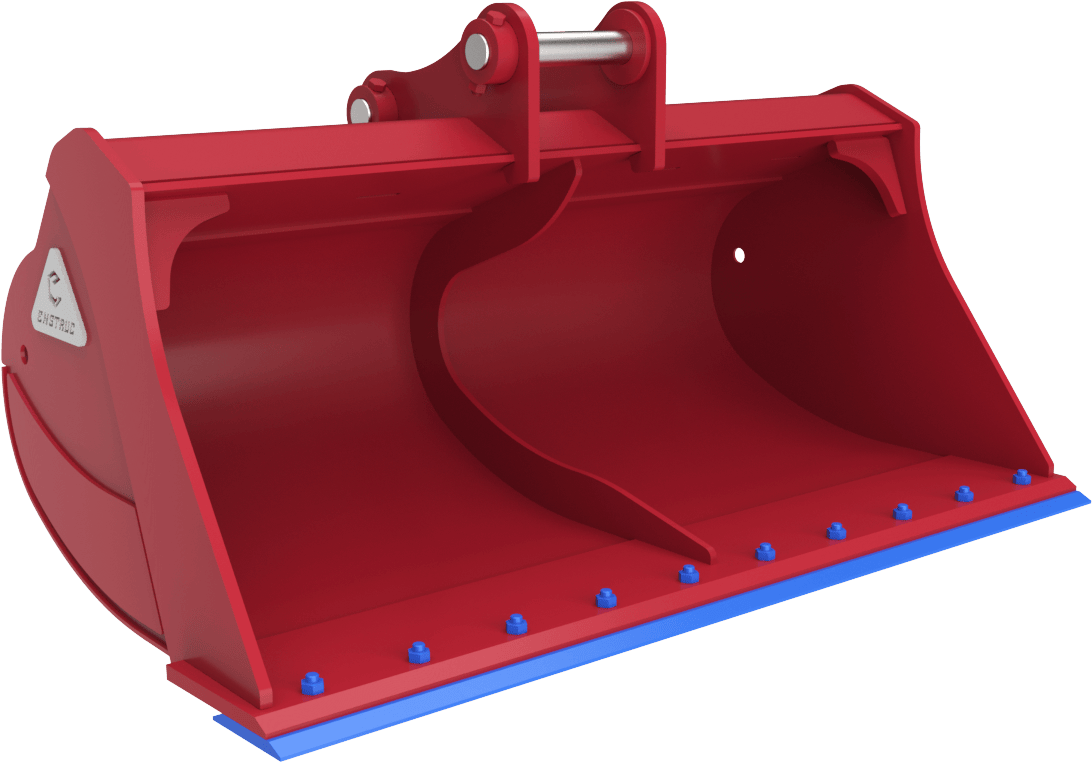

The Enstruc® Heavy Duty Ditching Bucket for Compact Excavators is engineered to enhance your mini excavator’s performance in various ditching and grading tasks.

This mini excavator attachment is ideal for applications such as cleaning wide trenches, grading, dressing slopes, and general landscaping projects.

Constructed from high-strength, abrasion-resistant steel, our compact ditching bucket ensures exceptional durability and longevity in demanding conditions.

Its design features a flat bottom and a wide, smooth edge, facilitating efficient material handling and leaving a clean finish on every pass.

Size options

Key Features

Enhanced bucket shape to fill faster
Tapered sidewalls to release sticky materials
Reinforced top beam evenly distributes loads
High strength bucket shell for HD operations
Equipped with HB450 bolt-on cutting edge
HB400 full bottom abrasion wear liner
HB400 wear-resistant side kick plates
Enhanced strength & rigidity with central rib

Quick Contact

Enstruc Wear Solutions | Compact excavator heavy duty ditching bucket 0

Enstruc Wear Solutions | Compact excavator heavy duty ditching bucket 1

Enstruc Wear Solutions | Compact excavator heavy duty ditching bucket 2

Enstruc Wear Solutions | Compact excavator heavy duty ditching bucket 3

Enstruc Wear Solutions | Compact excavator heavy duty ditching bucket 4

Enstruc Wear Solutions | Compact excavator heavy duty ditching bucket 5

Specifications and sizes

View DataHide Data

Category	Part Number	Machine Class		Width		Capacity		Weight		BOCE
Category5	Part NumberCHDD0515E20	Machine Class1,000 - 3,000 lbs	0.5 - 1.5 tonne	Width20 ''	508 mm	Capacity0.04 yd3	0.03 m3	Weight55 lbs	25 kg	BOCEOptional
Category5	Part NumberCHDD0515E24	Machine Class1,000 - 3,000 lbs	0.5 - 1.5 tonne	Width24 ''	610 mm	Capacity0.05 yd3	0.04 m3	Weight65 lbs	29 kg	BOCEOptional
Category5	Part NumberCHDD0515E30	Machine Class1,000 - 3,000 lbs	0.5 - 1.5 tonne	Width30 ''	762 mm	Capacity0.06 yd3	0.05 m3	Weight80 lbs	36 kg	BOCEOptional
Category5	Part NumberCHDD0515E36	Machine Class1,000 - 3,000 lbs	0.5 - 1.5 tonne	Width36 ''	914 mm	Capacity0.07 yd3	0.05 m3	Weight90 lbs	41 kg	BOCEOptional
Category15	Part NumberCHDD1525E20	Machine Class3,000 - 6,000 lbs	1.5 - 2.5 tonne	Width20 ''	508 mm	Capacity0.06 yd3	0.05 m3	Weight75 lbs	34 kg	BOCEOptional
Category15	Part NumberCHDD1525E24	Machine Class3,000 - 6,000 lbs	1.5 - 2.5 tonne	Width24 ''	610 mm	Capacity0.07 yd3	0.06 m3	Weight85 lbs	39 kg	BOCEOptional
Category15	Part NumberCHDD1525E30	Machine Class3,000 - 6,000 lbs	1.5 - 2.5 tonne	Width30 ''	762 mm	Capacity0.09 yd3	0.07 m3	Weight100 lbs	45 kg	BOCEOptional
Category15	Part NumberCHDD1525E36	Machine Class3,000 - 6,000 lbs	1.5 - 2.5 tonne	Width36 ''	914 mm	Capacity0.12 yd3	0.09 m3	Weight115 lbs	52 kg	BOCEOptional
Category25	Part NumberCHDD2545E24	Machine Class6,000 - 10,000 lbs	2.5 - 4.5 tonne	Width24 ''	610 mm	Capacity0.14 yd3	0.11 m3	Weight175 lbs	79 kg	BOCEDouble Bevel
Category25	Part NumberCHDD2545E30	Machine Class6,000 - 10,000 lbs	2.5 - 4.5 tonne	Width30 ''	762 mm	Capacity0.18 yd3	0.14 m3	Weight200 lbs	91 kg	BOCEDouble Bevel
Category25	Part NumberCHDD2545E36	Machine Class6,000 - 10,000 lbs	2.5 - 4.5 tonne	Width36 ''	914 mm	Capacity0.22 yd3	0.17 m3	Weight230 lbs	104 kg	BOCEDouble Bevel
Category25	Part NumberCHDD2545E40	Machine Class6,000 - 10,000 lbs	2.5 - 4.5 tonne	Width40 ''	1016 mm	Capacity0.24 yd3	0.18 m3	Weight245 lbs	111 kg	BOCEDouble Bevel
Category45	Part NumberCHDD4555E30	Machine Class10,000 - 12,000 lbs	4.5 - 5.5 tonne	Width30 ''	762 mm	Capacity0.28 yd3	0.22 m3	Weight400 lbs	181 kg	BOCEDouble Bevel
Category45	Part NumberCHDD4555E36	Machine Class10,000 - 12,000 lbs	4.5 - 5.5 tonne	Width36 ''	914 mm	Capacity0.34 yd3	0.26 m3	Weight440 lbs	200 kg	BOCEDouble Bevel
Category45	Part NumberCHDD4555E42	Machine Class10,000 - 12,000 lbs	4.5 - 5.5 tonne	Width42 ''	1067 mm	Capacity0.42 yd3	0.32 m3	Weight480 lbs	218 kg	BOCEDouble Bevel
Category45	Part NumberCHDD4555E48	Machine Class10,000 - 12,000 lbs	4.5 - 5.5 tonne	Width48 ''	1219 mm	Capacity0.47 yd3	0.36 m3	Weight520 lbs	236 kg	BOCEDouble Bevel
Category45	Part NumberCHDD4555E36	Machine Class10,000 - 12,000 lbs	4.5 - 5.5 tonne	Width36 ''	914 mm	Capacity0.41 yd3	0.31 m3	Weight600 lbs	272 kg	BOCEDouble Bevel
Category55	Part NumberCHDD5565E42	Machine Class12,000 - 14,000 lbs	5.5 - 6.5 tonne	Width42 ''	1067 mm	Capacity0.45 yd3	0.35 m3	Weight660 lbs	299 kg	BOCEDouble Bevel
Category55	Part NumberCHDD5565E48	Machine Class12,000 - 14,000 lbs	5.5 - 6.5 tonne	Width48 ''	1219 mm	Capacity0.56 yd3	0.42 m3	Weight720 lbs	327 kg	BOCEDouble Bevel
Category55	Part NumberCHDD5565E54	Machine Class12,000 - 14,000 lbs	5.5 - 6.5 tonne	Width54 ''	1372 mm	Capacity0.63 yd3	0.48 m3	Weight780 lbs	354 kg	BOCEDouble Bevel
Category55	Part NumberCHDD5565E64	Machine Class12,000 - 14,000 lbs	5.5 - 6.5 tonne	Width60 ''	1524 mm	Capacity0.70 yd3	0.54 m3	Weight840 lbs	381 kg	BOCEDouble Bevel
Category65	Part NumberCHDD6510E36	Machine Class14,000 - 24,000 lbs	6.5 - 10 tonne	Width36 ''	914 mm	Capacity0.41 yd3	0.31 m3	Weight600 lbs	272 kg	BOCEDouble Bevel
Category65	Part NumberCHDD6510E42	Machine Class14,000 - 24,000 lbs	6.5 - 10 tonne	Width42 ''	1067 mm	Capacity0.48 yd3	0.36 m3	Weight660 lbs	299 kg	BOCEDouble Bevel
Category65	Part NumberCHDD6510E48	Machine Class14,000 - 24,000 lbs	6.5 - 10 tonne	Width48 ''	1219 mm	Capacity0.56 yd3	0.42 m3	Weight720 lbs	327 kg	BOCEDouble Bevel
Category65	Part NumberCHDD6510E54	Machine Class14,000 - 24,000 lbs	6.5 - 10 tonne	Width54 ''	1372 mm	Capacity0.63 yd3	0.48 m3	Weight780 lbs	354 kg	BOCEDouble Bevel
Category65	Part NumberCHDD6510E60	Machine Class14,000 - 24,000 lbs	6.5 - 10 tonne	Width60 ''	1524 mm	Capacity0.70 yd3	0.54 m3	Weight840 lbs	381 kg	BOCEDouble Bevel
