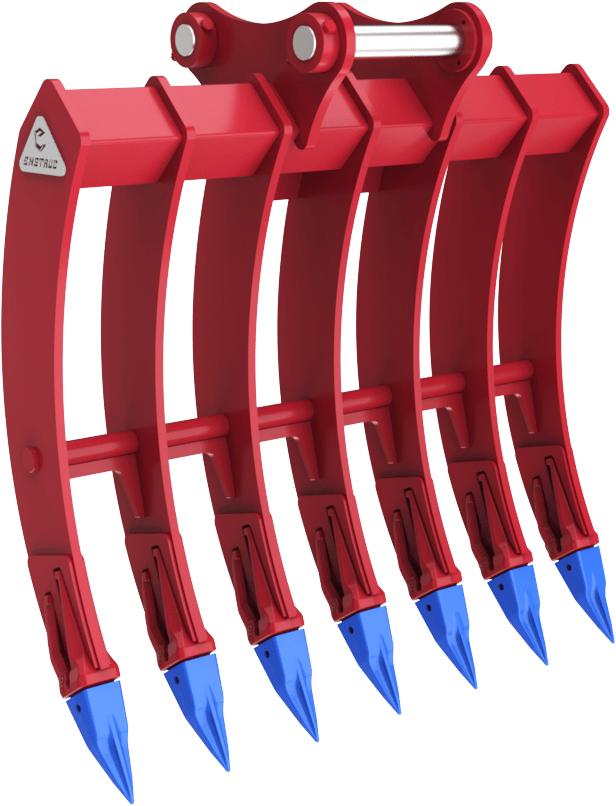

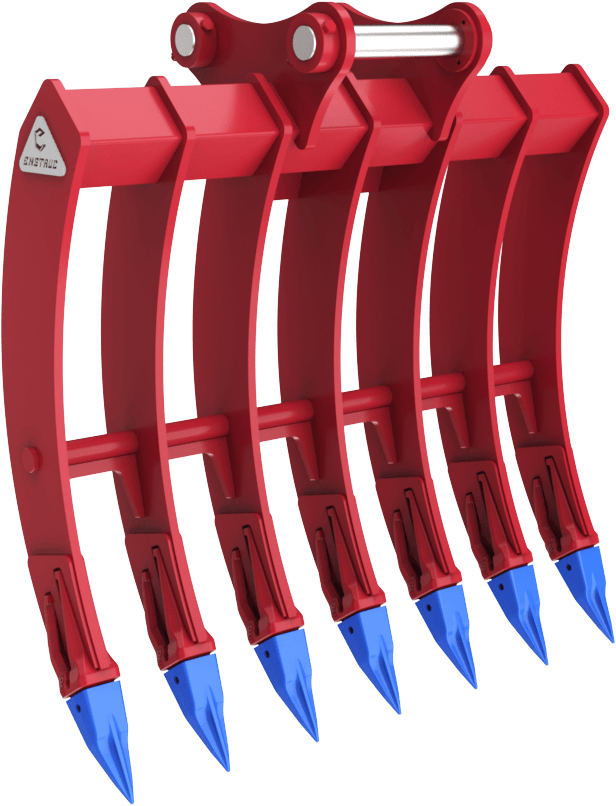

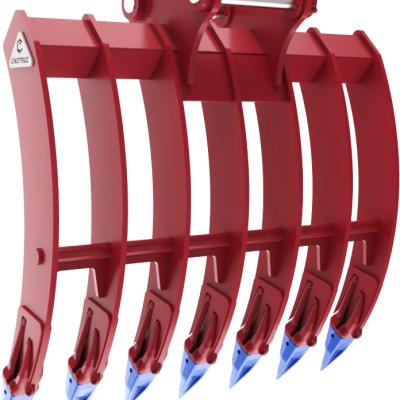

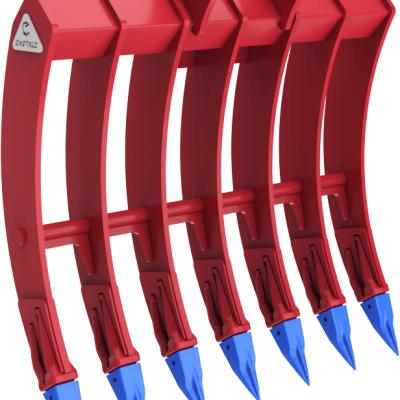

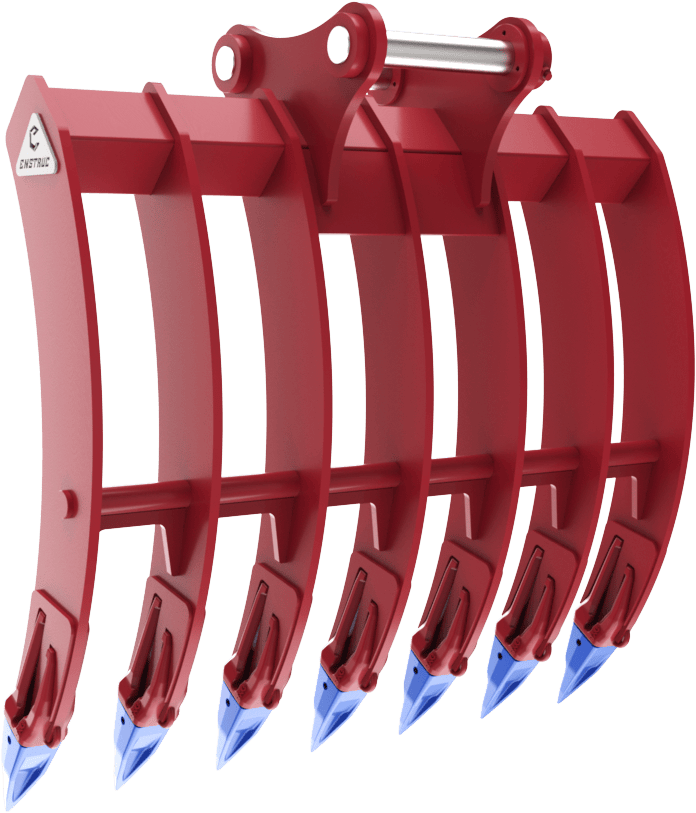

Construction excavator Land rake

Enstruc® Land Rakes are designed for the toughest landing clearing jobs and are the ultimate attachment for any construction excavator.

Whether dealing with large-scale site preparation, land reclamation, or forestry applications, our excavator land rakes are built to handle it all with unmatched efficiency and precision.

Size options

Key Features

Clear debris, brush & rocks
Direct mount or quick coupler
Reinforced S355 top beam
S355 ear plate with stiffeners
Thick S355 ribs with tiger teeth
S355 rod with structural plates
Durable HB400 tine wear pads
Custom tine gap size is available

Quick Contact

Specifications and sizes

View DataHide Data

Category	Part Number	Machine Class		Width		Weight		Teeth
Category100	Part NumberLR1015E54	Machine Class24,000 - 33,000 lbs	10 - 15 tonne	Width54 ''	1372 mm	Weight758 lbs	344 kg	Teeth5
Category150	Part NumberLR1520E60	Machine Class33,000 - 45,000 lbs	15 - 20 tonne	Width60 ''	1524 mm	Weight112 lbs	510 kg	Teeth6
Category200	Part NumberLR2025E60	Machine Class45,000 - 55,000 lbs	20 - 25 tonne	Width60 ''	1524 mm	Weight1340 lbs	608 kg	Teeth6
Category250	Part NumberLR2530E72	Machine Class55,000 - 65,000 lbs	25 - 30 tonne	Width72 ''	1829 mm	Weight1896 lbs	860 kg	Teeth6
Category300	Part NumberLR3040E72	Machine Class65,000 - 90,000 lbs	30 - 40 tonne	Width72 ''	1829 mm	Weight2367 lbs	1074 kg	Teeth6
Category400	Part NumberLR4052E84	Machine Class90,000 - 115,000 lbs	40 - 52 tonne	Width84 ''	2134 mm	Weight3474 lbs	1576 kg	Teeth7

Tailored products and wear solutions for productivity challenges

Enstruc specialises in custom engineered products designed to tackle heavy industry equipment productivity and wear challenges. Our buckets, attachments, ground engaging tools and protective wear systems are designed to withstand extreme conditions, significantly reducing downtime and maintenance costs. By customising products to specific operational needs, Enstruc enhances the efficiency and longevity of heavy machinery, ensuring that equipment performs optimally in the most demanding terrain. Whether it’s through advanced steels and wear-resistant materials or precision engineered designs, our products and wear solutions empower construction and mining operations around the globe to maximise productivity while minimising the impact of wear and tear.
