Equipment Attachments

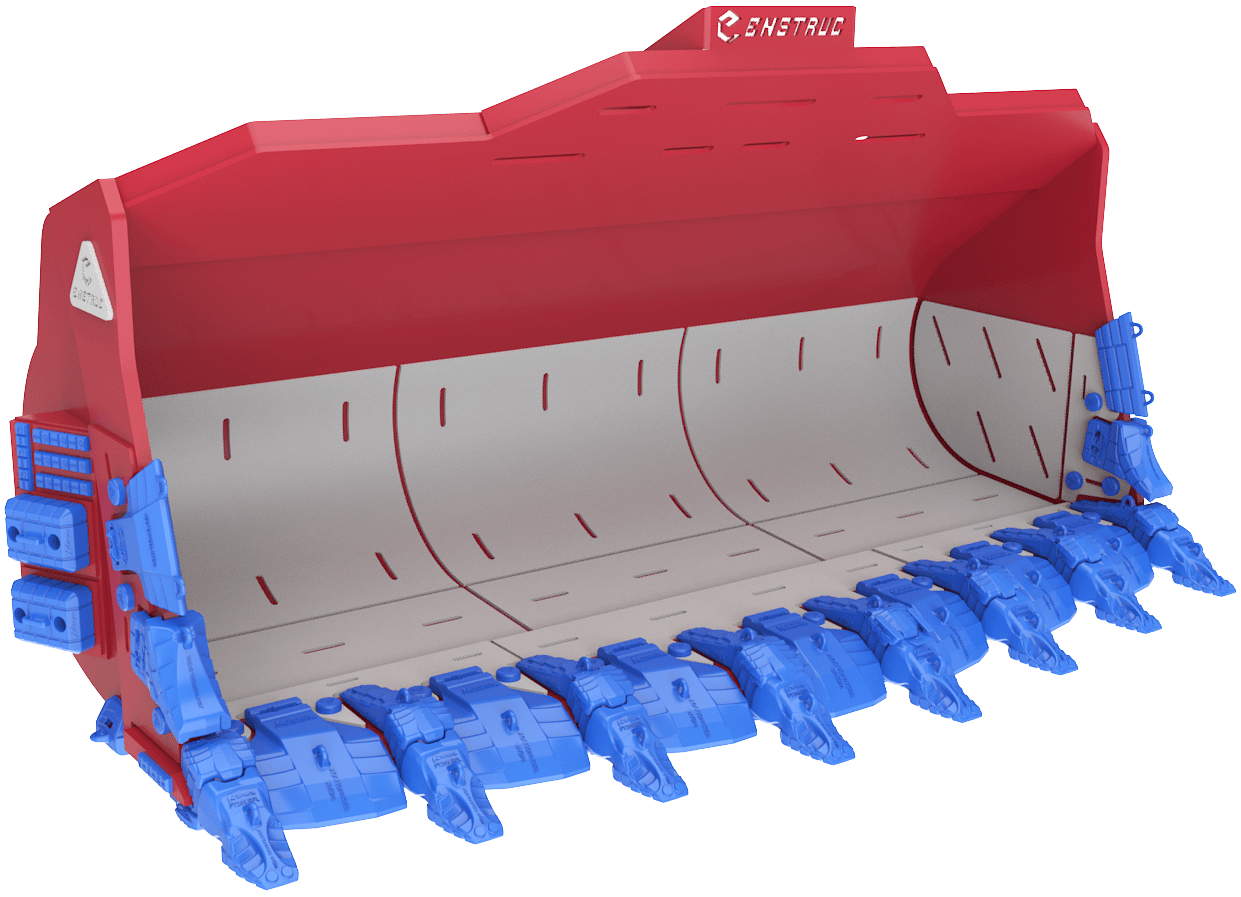

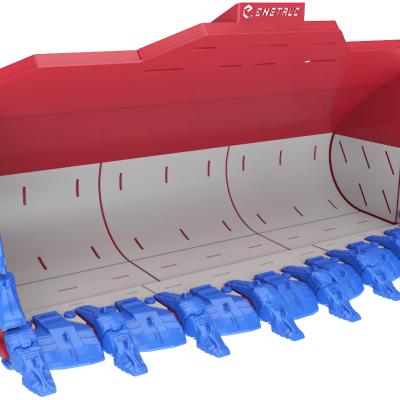

Mining wheel loaderExtreme rock bucket

Enstruc® Extreme Rock Mining Loader Buckets are designed for the most challenging quarries and surface mining environments worldwide. These extreme mining rock buckets are custom engineered using high quality steel and feature a mining GET system and chromium carbide overlay.

This makes them suitable for bulk loading and excavation in materials with high abrasion and high impact, such as dense ore and large hard rock fragments resulting from blasting operations.

Size options

Key Features

Designed using FEA for optimal performance
Lightweight, ultra high strength loader shell
Mining spade lip with hammerless rock teeth
Mechanical lip segments & adapter top covers
Upper & lower mechanical wing shrouds
Multiple wear liners: HB400/HB500/CCO
Rock deflectors with impact wear blocks
Equipped with cast weld-on heel shrouds
Bottom heavy duty bolt-on wear runners

Quick Contact

Sending...

Uploading Files

Field is required

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Enstruc Wear Solutions | Mining wheel loader extreme rock bucket 0

Enstruc Wear Solutions | Mining wheel loader extreme rock bucket 1

Enstruc Wear Solutions | Mining wheel loader extreme rock bucket 2

Enstruc Wear Solutions | Mining wheel loader extreme rock bucket 3

Enstruc Wear Solutions | Mining wheel loader extreme rock bucket 4

Specifications and sizes

View DataHide Data

Category	Part Number	Machine Class		Width		Capacity		Lip
Category800	Part Number800WL700XR150	Machine Class8.00 – 10.0 yd3	6.12 – 7.65 m3	Width150 ”	3810 mm	Capacity7.00 yd3	5.35 m3	LipSpade w/ teeth
Category800	Part Number800WL800XR150	Machine Class8.00 – 10.0 yd3	6.12 – 7.65 m3	Width150 ”	3810 mm	Capacity8.00 yd3	6.12 m3	LipSpade w/ teeth
Category800	Part Number800WL900XR150	Machine Class8.00 – 10.0 yd3	6.12 – 7.65 m3	Width150 ”	3810 mm	Capacity9.00 yd3	6.88 m3	LipSpade w/ teeth
Category800	Part Number800WL950XR150	Machine Class8.00 – 10.0 yd3	6.12 – 7.65 m3	Width150 ”	3810 mm	Capacity9.50 yd3	7.26 m3	LipSpade w/ teeth
Category800	Part Number800WL1000XR150	Machine Class8.00 – 10.0 yd3	6.12 – 7.65 m3	Width150 ”	3810 mm	Capacity10.00 yd3	7.65 m3	LipSpade w/ teeth
Category1000X	Part Number1000XWL1600XR190	Machine Class13.00 – 16.00 yd3	9.94 – 12.23 m3	Width190 ”	4826 mm	Capacity16.00 yd3	12.23 m3	LipSpade w/ teeth
Category1000X	Part Number1000XWL1700XR190	Machine Class13.00 – 16.00 yd3	9.94 – 12.23 m3	Width190 ”	4826 mm	Capacity17.00 yd3	13.00 m3	LipSpade w/ teeth
Category1000X	Part Number1000XWL1800XR190	Machine Class13.00 – 16.00 yd3	9.94 – 12.23 m3	Width190 ”	4826 mm	Capacity18.00 yd3	13.76 m3	LipSpade w/ teeth

Tailored products and wear solutions for productivity challenges

Enstruc specialises in custom engineered products designed to tackle heavy industry equipment productivity and wear challenges. Our buckets, attachments, ground engaging tools and protective wear systems are designed to withstand extreme conditions, significantly reducing downtime and maintenance costs. By customising products to specific operational needs, Enstruc enhances the efficiency and longevity of heavy machinery, ensuring that equipment performs optimally in the most demanding terrain. Whether it’s through advanced steels and wear-resistant materials or precision engineered designs, our products and wear solutions empower construction and mining operations around the globe to maximise productivity while minimising the impact of wear and tear.
