Quarry excavatorCat K bucket teeth

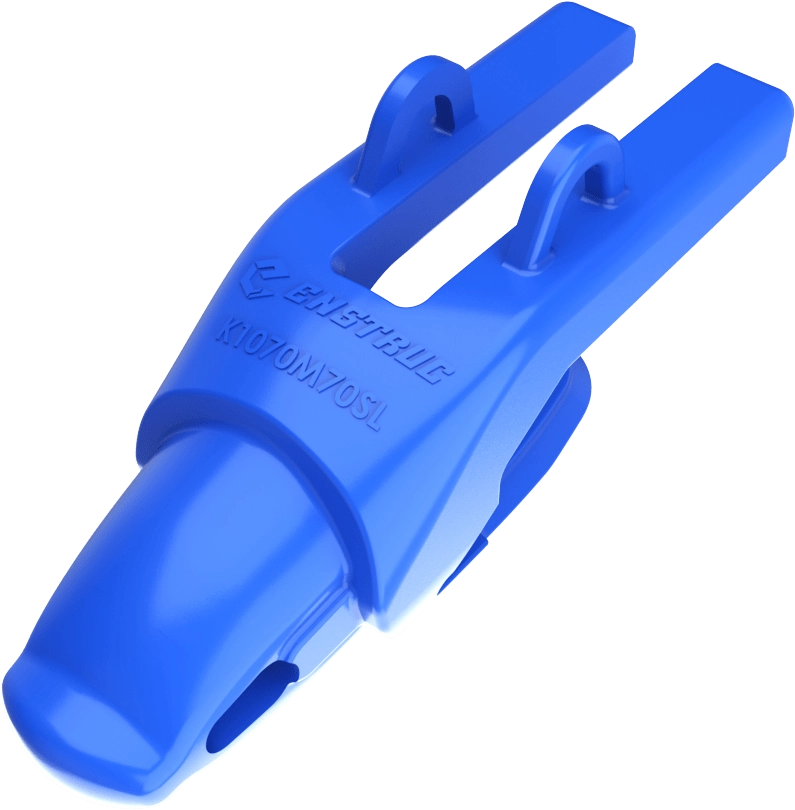

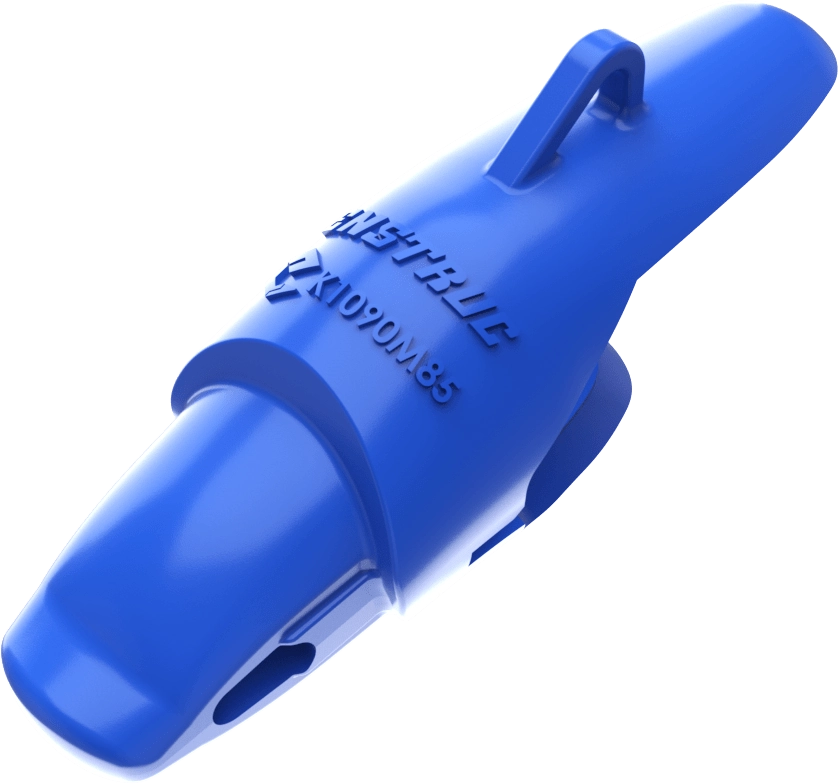

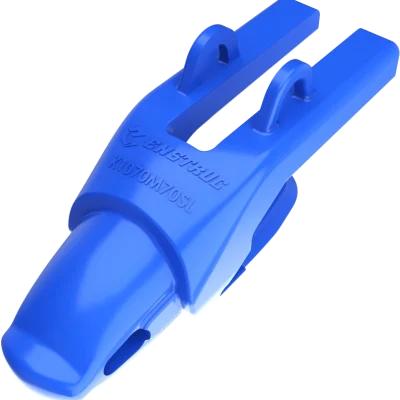

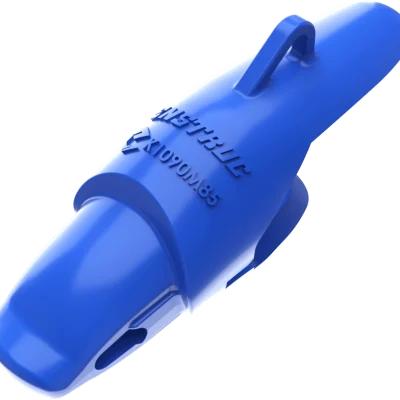

Enstruc® Cat K Teeth and Adapters are designed for Construction Excavators weighing up to 80 tonnes.

The twist-on tooth design and vertical retainer ensure excellent tooth retention, easy changeouts, and long-lasting sharpness.

Cast with Enstruc® performance alloys, our Cat K bucket teeth provide exceptional strength, penetration, and wear life across various excavator applications.

Size options

Key Features

Tip & adapter size: K80 - K170
General tip for most applications

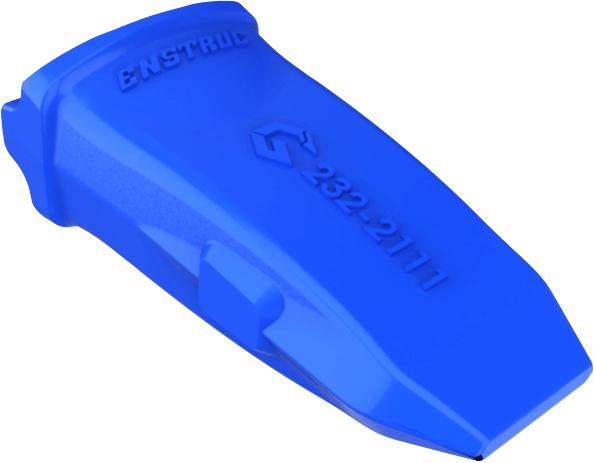

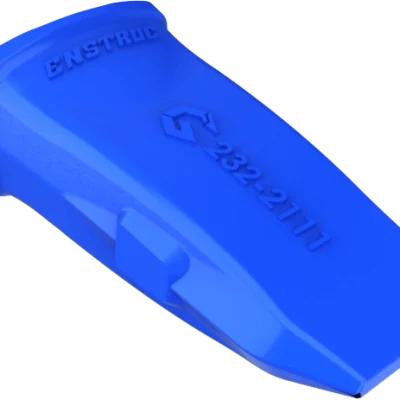

Extra duty tip has more wear material
Penetration tip for dense materials

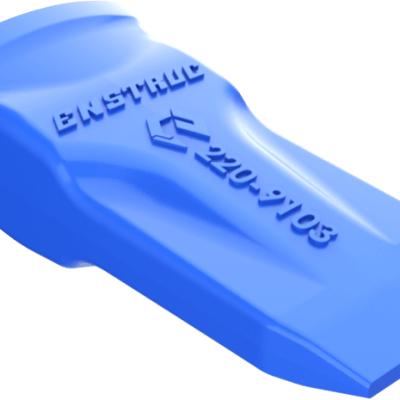

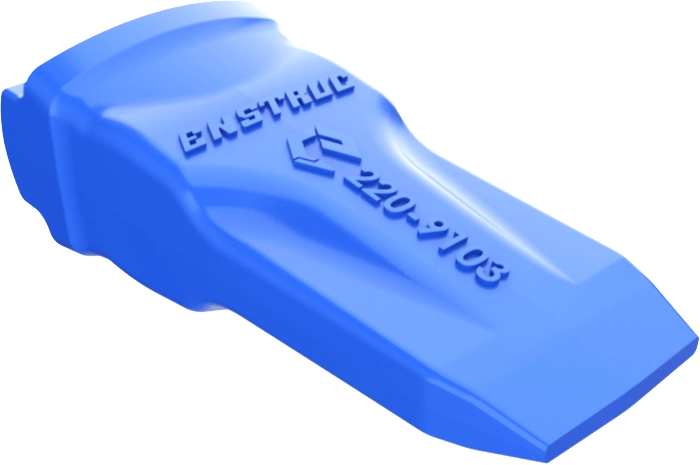

Penetration plus tip has more wear material
Wide tip for a smooth trench floor

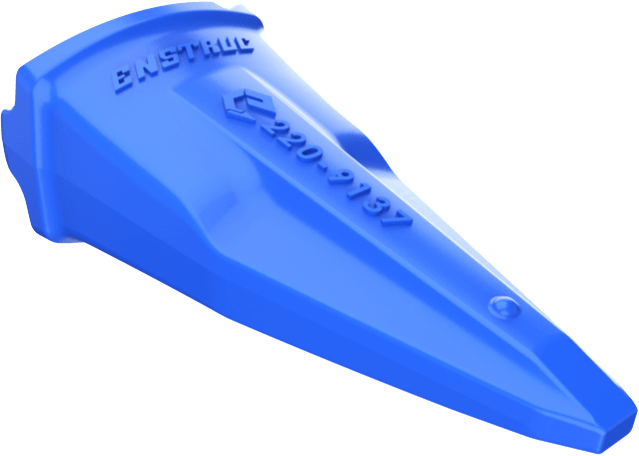

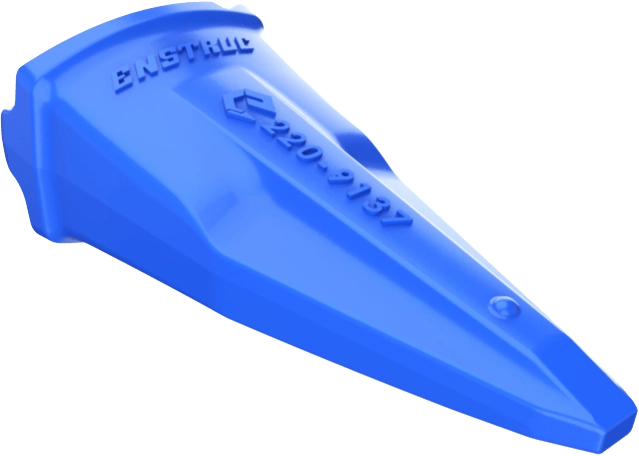

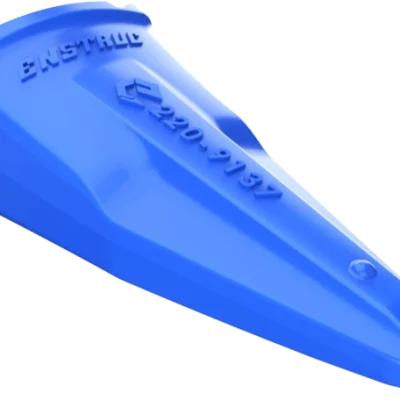

Spike tip for maximum penetration

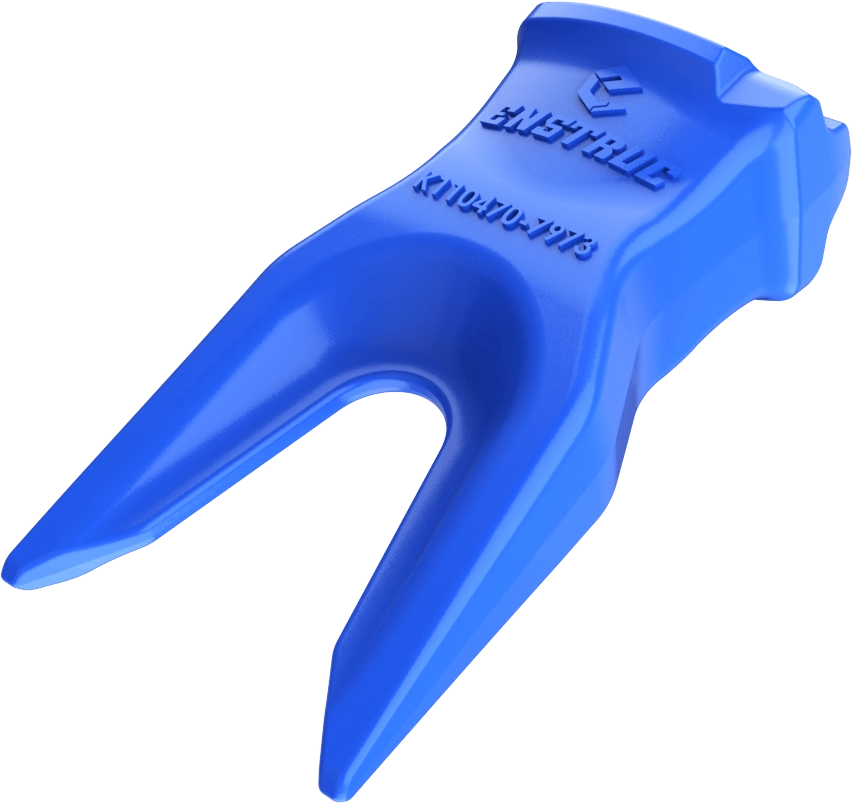

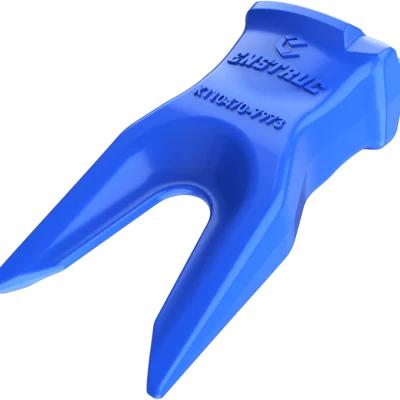

Double spike for bucket corners

Quick Contact

Sending...

Uploading Files

Field is required

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Enstruc Wear Solutions | Quarry excavator Cat K bucket teeth 0

Enstruc Wear Solutions | Quarry excavator Cat K bucket teeth 1

Enstruc Wear Solutions | Quarry excavator Cat K bucket teeth 2

Enstruc Wear Solutions | Quarry excavator Cat K bucket teeth 3

Enstruc Wear Solutions | Quarry excavator Cat K bucket teeth 4

Enstruc Wear Solutions | Quarry excavator Cat K bucket teeth 5

Enstruc Wear Solutions | Quarry excavator Cat K bucket teeth 6

Enstruc Wear Solutions | Quarry excavator Cat K bucket teeth 7

Enstruc Wear Solutions | Quarry excavator Cat K bucket teeth 8

Enstruc Wear Solutions | Quarry excavator Cat K bucket teeth 9

Specifications and sizes

View DataHide Data

Category	Tooth Style	Part Number	Weight		Pin
CategoryK80	Tooth StyleWide	Part Number222-1080	Weight12.57 lbs	5.70 kg	Pin220-9090
CategoryK90	Tooth StyleWide	Part Number222-1090	Weight18.30 lbs	8.30 kg	Pin220-9090
CategoryK100	Tooth StyleWide	Part Number223-8100	Weight25.57 lbs	11.60 kg	Pin220-9090
CategoryK110	Tooth StyleWide	Part Number223-8110	Weight33.29 lbs	15.10 kg	Pin220-9110
CategoryK130	Tooth StyleWide	Part Number223-8130	Weight61.73 lbs	28.00 kg	Pin220-9130
CategoryK150	Tooth StyleWide	Part Number195-5151	Weight84.88 lbs	38.50 kg	Pin233-7150
CategoryK170	Tooth StyleWide	Part Number223-8170	Weight126.77 lbs	57.50 kg	Pin232-0170
Category	Tooth Style	Part Number	Weight		Pin

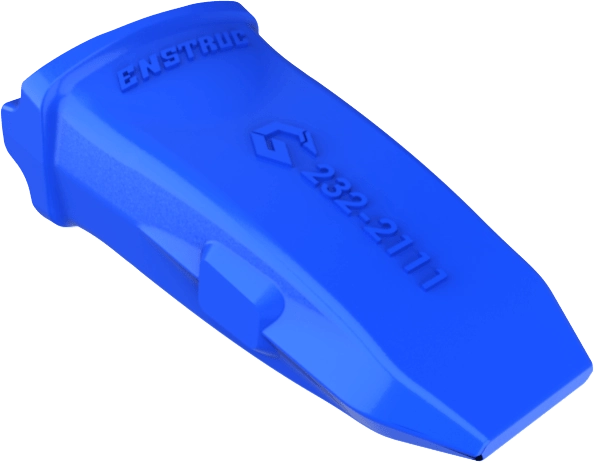

CategoryK80	Tooth StyleExtra Duty	Part Number220-9081	Weight12.57 lbs	5.70 kg	Pin220-9090
CategoryK90	Tooth StyleExtra Duty	Part Number220-9091	Weight16.76 lbs	7.60 kg	Pin220-9090
CategoryK100	Tooth StyleExtra Duty	Part Number220-9101	Weight24.25 lbs	11.00 kg	Pin220-9090
CategoryK110	Tooth StyleExtra Duty	Part Number232-2111	Weight39.68 lbs	18.00 kg	Pin220-9110
CategoryK130	Tooth StyleExtra Duty	Part Number264-2131	Weight53.57 lbs	24.30 kg	Pin220-9130
CategoryK150	Tooth StyleExtra Duty	Part Number264-2151	Weight89.29 lbs	40.50 kg	Pin233-7150
CategoryK170	Tooth StyleExtra Duty	Part Number264-2171	Weight125.22 lbs	56.80 kg	Pin232-0170
Category	Tooth Style	Part Number	Weight		Pin
CategoryK80	Tooth StylePenetration	Part Number220-9082	Weight11.90 lbs	5.40 kg	Pin220-9090
CategoryK90	Tooth StylePenetration	Part Number220-9092	Weight15.87 lbs	7.20 kg	Pin220-9090
CategoryK100	Tooth StylePenetration	Part Number220-9102	Weight22.49 lbs	10.20 kg	Pin220-9090
CategoryK110	Tooth StylePenetration	Part Number220-9112	Weight26.01 lbs	11.80 kg	Pin220-9110
CategoryK130	Tooth StylePenetration	Part Number220-9132	Weight35.71 lbs	16.20 kg	Pin220-9130
CategoryK150	Tooth StylePenetration	Part Number229-7152	Weight59.52 lbs	27.00 kg	Pin233-7150
CategoryK170	Tooth StylePenetration	Part Number232-0172	Weight85.98 lbs	39.00 kg	Pin232-0170
Category	Tooth Style	Part Number	Weight		Pin
CategoryK80	Tooth StylePenetration Plus	Part Number220-9083	Weight13.89 lbs	6.30 kg	Pin220-9090
CategoryK90	Tooth StylePenetration Plus	Part Number220-9093	Weight17.42 lbs	7.90 kg	Pin220-9090
CategoryK100	Tooth StylePenetration Plus	Part Number220-9103	Weight26.01 lbs	11.80 kg	Pin220-9090
CategoryK110	Tooth StylePenetration Plus	Part Number220-9113	Weight36.38 lbs	16.50 kg	Pin220-9110
CategoryK130	Tooth StylePenetration Plus	Part Number220-9133	Weight51.37 lbs	23.30 kg	Pin220-9130
CategoryK150	Tooth StylePenetration Plus	Part Number229-7153	Weight75.18 lbs	34.10 kg	Pin233-7150
CategoryK170	Tooth StylePenetration Plus	Part Number232-0173	Weight99.87 lbs	45.30 kg	Pin232-0170
Category	Tooth Style	Part Number	Weight		Pin
CategoryK80	Tooth StyleSpike	Part Number220-9087	Weight9.48 lbs	4.30 kg	Pin220-9090
CategoryK90	Tooth StyleSpike	Part Number220-9097	Weight14.33 lbs	6.50 kg	Pin220-9090
CategoryK100	Tooth StyleSpike	Part Number220-9107	Weight18.74 lbs	8.50 kg	Pin220-9090
CategoryK110	Tooth StyleSpike	Part Number220-9117	Weight27.56 lbs	12.50 kg	Pin220-9110
CategoryK130	Tooth StyleSpike	Part Number220-9137	Weight36.38 lbs	16.50 kg	Pin220-9130
CategoryK150	Tooth StyleSpike	Part Number229-7157	Weight59.75 lbs	27.10 kg	Pin233-7150
CategoryK170	Tooth StyleSpike	Part Number232-0177	Weight83.78 lbs	38.00 kg	Pin232-0170
Category	Tooth Style	Part Number	Weight		Pin
CategoryK80	Tooth StyleDouble Spike	Part Number220-9088	Weight11.46 lbs	5.20 kg	Pin220-9090
CategoryK90	Tooth StyleDouble Spike	Part Number220-9098	Weight16.31 lbs	7.40 kg	Pin220-9090
CategoryK100	Tooth StyleDouble Spike	Part Number220-9108	Weight23.15 lbs	10.50 kg	Pin220-9090
CategoryK110	Tooth StyleDouble Spike	Part Number220-9118	Weight33.95 lbs	15.40 kg	Pin220-9110
CategoryK130	Tooth StyleDouble Spike	Part Number220-9138	Weight45.19 lbs	20.50 kg	Pin220-9130
CategoryK150	Tooth StyleDouble Spike	Part Number229-7158	Weight65.26 lbs	29.60 kg	Pin233-7150
CategoryK170	Tooth StyleDouble Spike	Part Number232-0178	Weight102.07 lbs	46.30 kg	Pin232-0170
Category	Tooth Style	Part Number	Weight		Pin

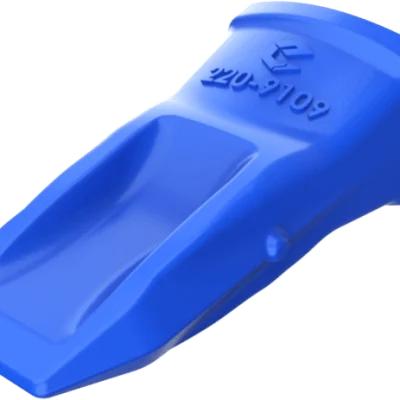

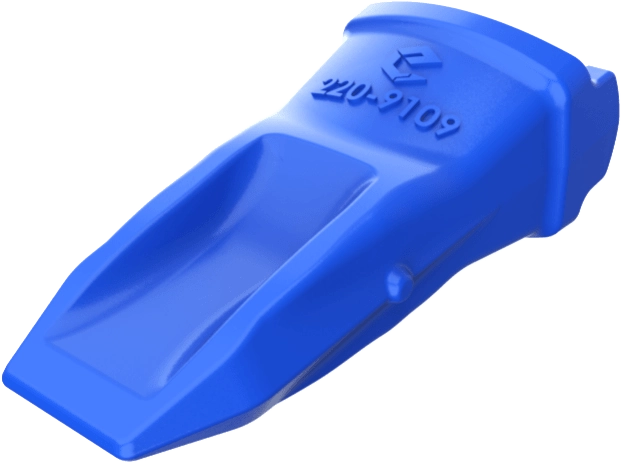

CategoryK80	Tooth StyleGeneral Duty	Part Number220-9089	Weight11.24 lbs	5.10 kg	Pin220-9090
CategoryK90	Tooth StyleGeneral Duty	Part Number220-9099	Weight13.45 lbs	6.10 kg	Pin220-9090
CategoryK100	Tooth StyleGeneral Duty	Part Number220-9109	Weight19.62 lbs	8.90 kg	Pin220-9090
CategoryK110	Tooth StyleGeneral Duty	Part Number220-9119	Weight29.76 lbs	13.50 kg	Pin220-9110
CategoryK130	Tooth StyleGeneral Duty	Part Number220-9139	Weight41.89 lbs	19.00 kg	Pin220-9130
CategoryK150	Tooth StyleGeneral Duty	Part Number229-7159	Weight65.04 lbs	29.50 kg	Pin233-7150
CategoryK170	Tooth StyleGeneral Duty	Part Number232-0179	Weight88.85 lbs	40.30 kg	Pin232-0170
Category	Tooth Style	Part Number	Weight		Pin
CategoryK80	Tooth StyleHeavy Penetration	Part Number222-1081	Weight20.72 lbs	9.40 kg	Pin220-9090
CategoryK90	Tooth StyleHeavy Penetration	Part Number222-1091	Weight25.57 lbs	11.60 kg	Pin220-9090
CategoryK100	Tooth StyleHeavy Penetration	Part Number223-8101	Weight33.07 lbs	15.00 kg	Pin220-9090
CategoryK110	Tooth StyleHeavy Penetration	Part Number232-2112	Weight45.19 lbs	20.50 kg	Pin220-9110
CategoryK130	Tooth StyleHeavy Penetration	Part Number264-2132	Weight66.14 lbs	30.00 kg	Pin220-9130
CategoryK150	Tooth StyleHeavy Penetration	Part Number264-2152	Weight108.03 lbs	49.00 kg	Pin233-7150
CategoryK170	Tooth StyleHeavy Penetration	Part Number264-2172	Weight149.91 lbs	68.00 kg	Pin232-0170
